Independent solar generation
Battery-based electricity for locations beyond the grid
Independent electricity system

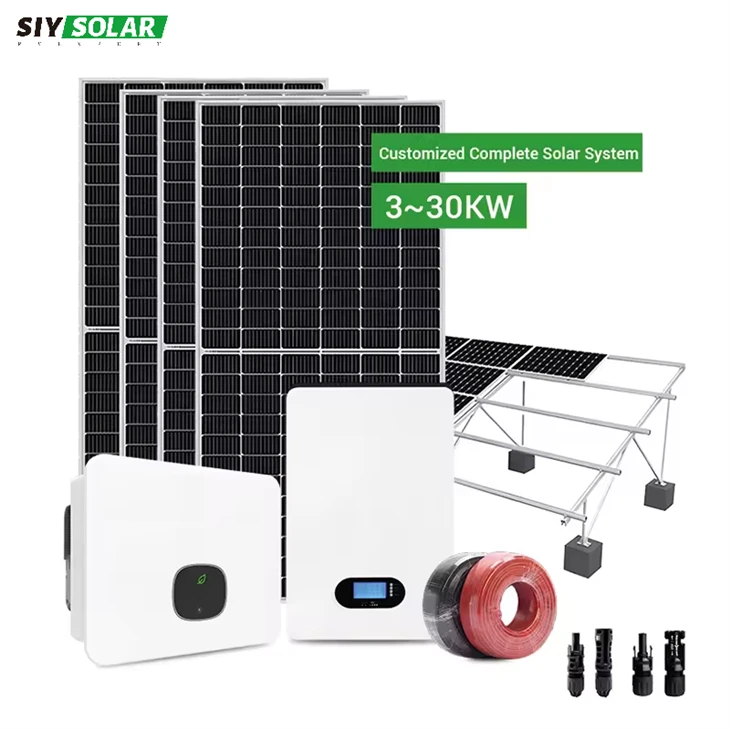

Off Grid Solar System
Reliable power does not have to stop where the utility line ends.
Our Off Grid Solar System creates a private energy supply by combining solar generation, battery storage, power conversion and electrical protection. It is developed for homes, farms, cabins, workshops and remote businesses that need dependable electricity without daily reliance on a public grid connection.
Whether you need a practical off grid solar kit or a complete off grid solar system with batteries, the configuration is selected from the appliances, operating hours, seasonal sunlight and reserve time required by the property.
Solar generation + storage + AC power
Product Information Product Purpose Energy Route Equipment Scope Package Options System Sizing Price Factors Project Standards Questions
Power where you need it
A stand alone solar system built around real electricity demand
A grid-connected installation can ask the utility for additional electricity. A stand alone solar system cannot. This makes accurate planning especially important: the array must collect enough energy, the battery must hold a useful reserve and the inverter must support both normal and starting loads.
Produce power locally
Off grid solar panels turn available sunlight into electricity close to the point of use, avoiding the need to extend utility service into difficult or isolated locations.
Store power for later
An off grid battery system keeps selected solar production available after sunset, during cloudy weather and when temporary loads exceed current solar output.
Convert power for appliances
The off grid inverter supplies AC electricity at the required voltage and frequency while coordinating solar charging, battery use and optional generator support.
How a stand alone solar power system supports the property
The operating schedule changes with weather, battery state and appliance demand. A properly configured stand alone solar power system continually balances the energy being produced, stored and consumed.
The PV array generates DC electricity. MPPT control responds to changing sunlight and panel operating conditions.
Available solar energy can supply appliances operating during the day while reducing unnecessary battery discharge.
Solar energy not immediately required by the property can be used to recharge the battery within the configured charging limits.
The inverter draws from the available battery reserve when solar production falls below household demand.
Where included, a compatible generator can support loads or battery charging during extended periods of poor solar production.
One coordinated power package, not unrelated components
The best off grid solar system is created by matching the electrical limits and communication requirements of every major component. Final models are confirmed in the project quotation and supporting datasheets.
Collect sunlight and generate DC electricity for the system.
Selected by available space, local conditions, array voltage and required daily production.
Secures the modules to a roof structure or ground-mounted frame.
Selected by roof type, wind environment, installation angle and corrosion conditions.

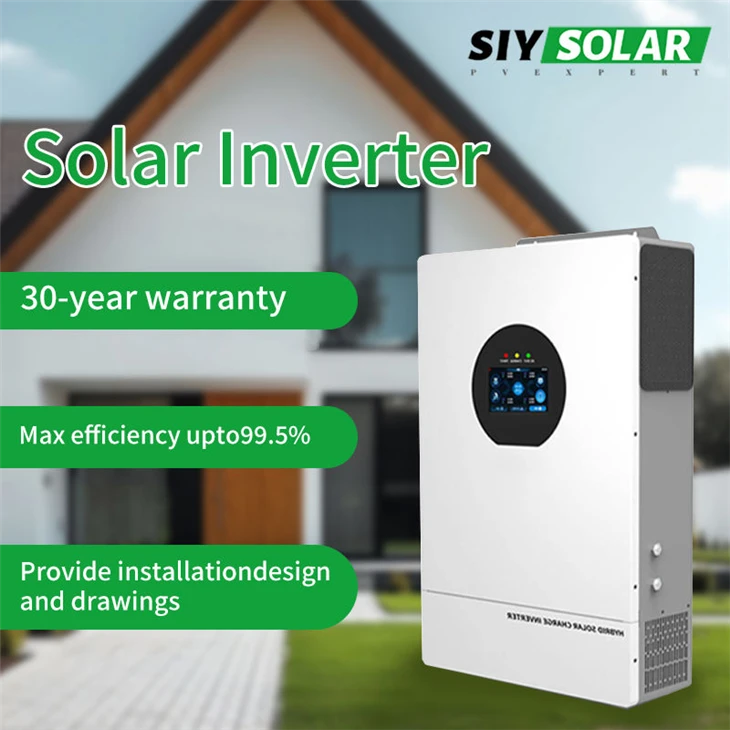

Converts DC power into household AC electricity and manages the relationship between solar, batteries and loads.
Selected by continuous output, surge demand, voltage, phase, frequency and generator requirements.
Retains electricity for nighttime use and periods when solar output is below the required load.
Selected by usable capacity, discharge power, environment, reserve period and expansion plan.
Supports safe isolation, overcurrent protection, grounding and power distribution.
Final devices depend on conductor size, fault rating, equipment layout and local electrical requirements.

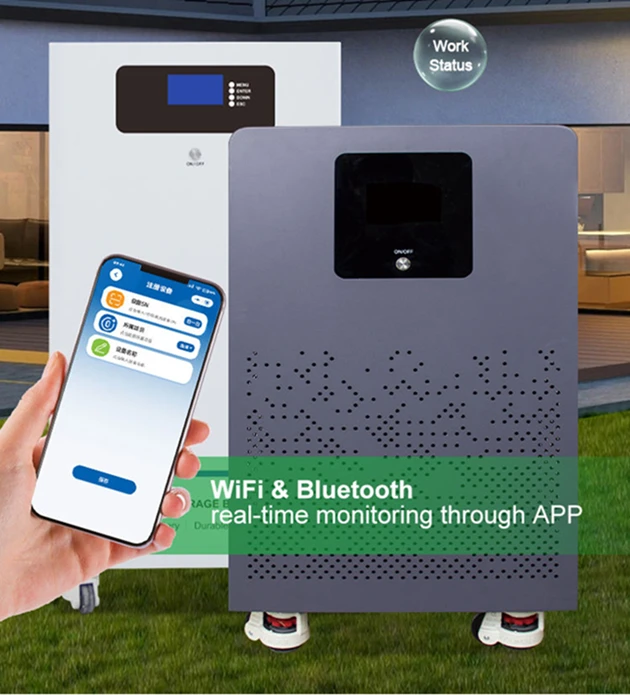

Provides visibility into solar production, battery status, load behavior and operating warnings.
Communication options vary according to the selected inverter and monitoring platform.
Off grid solar system packages with batteries for different properties
Off grid solar system packages should be selected from the intended use, not from a promotional wattage alone. The following categories provide practical starting points for quotation.
Permanent residential package
A complete off grid solar system with batteries for customers who require regular household electricity throughout the year.
- Refrigerators, lighting and communication equipment
- Water pumps and selected kitchen appliances
- Expandable PV generation and battery storage
- Inverter output matched to household surge demand
- Optional generator input for extended low-sun periods
Compact off grid solar kit
Intended for cabins, sheds, monitoring equipment and efficient appliances with controlled daily consumption.
- Lighting and communication devices
- Small refrigeration loads
- Security and monitoring equipment
- Basic water-pumping applications
Expanded independent power package
Developed for larger residences, farms, workshops or remote businesses requiring customized off grid power solutions.
- Multiple household circuits
- Motor and compressor starting loads
- Larger battery reserve requirements
- Generator and load-management options
Start with the appliances, then select the equipment
System reliability depends on the relationship between daily energy, maximum simultaneous demand, motor-starting power and seasonal solar production. A panel count alone cannot answer these questions.
- Record the electrical loads List appliance wattage, quantity and typical operating hours.
- Identify essential equipment Separate must-run loads from appliances that can be delayed or switched off.
- Check starting current Pumps, refrigeration and workshop motors may need additional inverter surge capacity.
- Choose a reserve period Define how long the system should operate when solar production is limited.
- Review the lowest-sun season Year-round systems should be evaluated against seasonal production changes.
- Plan possible expansion Future appliances may affect the original inverter, battery and solar array design.
Battery selection matters
The best batteries for solar off grid applications are selected by usable energy, discharge power, battery management, environmental limits, warranty and inverter compatibility.
A larger nominal capacity does not automatically provide better results. The battery must also deliver the required power safely and operate within the selected inverter's communication and voltage limits.
Understanding the off grid solar system cost
Off-grid projects do not have one standard price because they do not have one standard energy requirement. The off grid solar system cost changes with the required production, storage, power output and installation scope.
A search for a 10kw off grid solar system price may return packages with very different battery capacities and equipment scopes. Before comparing offers, check panel quantity, usable battery kWh, inverter surge rating, mounting, protection, cables, commissioning and warranty support.
The most useful 10kw off grid solar system price is an itemized quotation based on the property's load schedule and installation conditions.
What a responsible system proposal should contain
Performance estimates should explain the assumptions behind them. Solar generation varies with location, shading, temperature, panel direction and system losses. Battery runtime varies with actual consumption, temperature, reserve settings and battery condition.
Information reviewed
- Project location and installation environment
- Recent electricity use or appliance schedule
- Maximum running and starting power
- Required AC voltage, phase and frequency
- Desired battery reserve period
- Generator availability and future expansion plans
Information documented
- Recommended equipment configuration
- Solar and battery sizing assumptions
- Included equipment and installation boundaries
- Applicable product datasheets
- Operating environment requirements
- Warranty and after-sales conditions
Final structural loading, conductor sizing, protection, grounding, battery placement and installation compliance should be verified by qualified professionals according to the requirements of the project location.
Off Grid Solar System FAQ
Off grid solar system packages may include panels, mounting, an off grid inverter, batteries, breakers, disconnects, cables and monitoring. Confirm the exact equipment list because off grid solar system packages do not always include installation or commissioning.
How do I compare off grid solar system packages with batteries?Compare usable battery capacity, inverter output, surge power, panel quantity, reserve time, generator compatibility and installation scope. Off grid solar system packages with batteries should be evaluated against the same appliance schedule.
What is the best off grid solar system for my property?The best off grid solar system is the configuration that meets the property's daily energy, peak demand and seasonal reserve requirements without relying on unrealistic production or runtime assumptions.
How much is a 10kW off-grid system?A 10kw off grid solar system price depends on battery capacity, solar array size, inverter specification, mounting, protection, freight and installation. Request an itemized quotation before comparing totals.
How many off grid solar panels do I need?The number of off grid solar panels depends on daily energy use, local solar resource, panel wattage, array orientation and system losses. The lowest-production season should be included in the review.
Which are the best batteries for solar off grid use?The best batteries for solar off grid projects are those with suitable usable capacity, power output, environmental limits, battery management, warranty and compatibility with the selected inverter.
Can the off grid battery system be expanded?Expansion may be possible when the off grid battery system, inverter, controller and protection equipment support additional battery capacity. Future expansion should be considered during the first design.
Can an off grid inverter work with a backup generator?Many models support generator input, but the off grid inverter and generator must be compatible in voltage, frequency, output stability and charging control. The installation must also provide safe switching.
Is an off grid solar kit suitable for a full-time home?A small off grid solar kit may be intended only for limited loads. A full-time residence normally requires a load-based design, larger energy storage and equipment selected for year-round operation.
Start your independent energy project
Share your project location, appliance list, daily operating hours, required voltage and expected reserve time. We can prepare off grid power solutions and a complete off grid solar system with batteries proposal for your home, farm, cabin or remote business.
Request Your Off-Grid Solar Quotation
